SHBA-42A Automatic18650/26650/21700 Battery Packs Welding Equipment
SHBA-42A Automatic18650/26650/21700 Battery Packs Welding Equipment

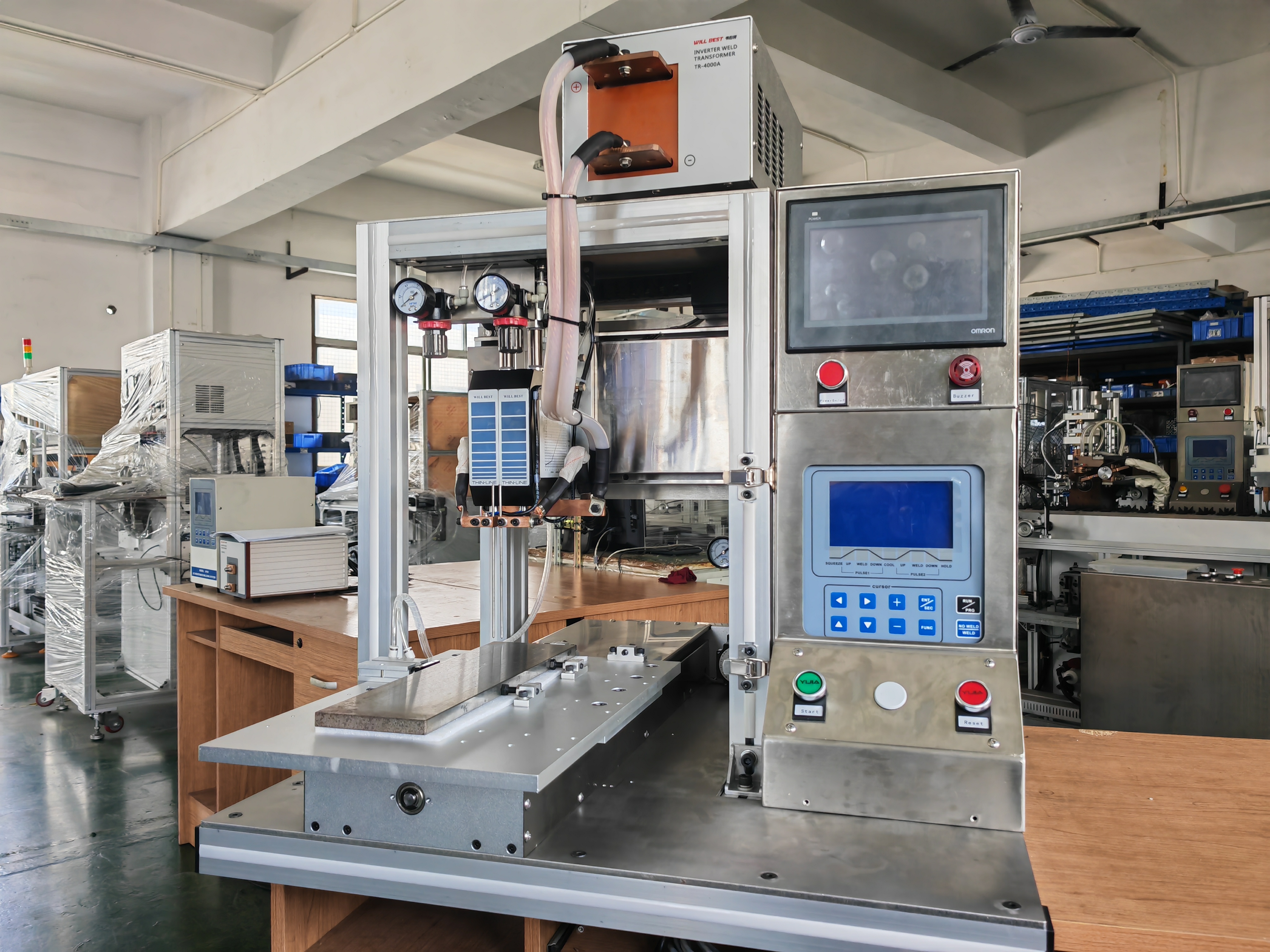

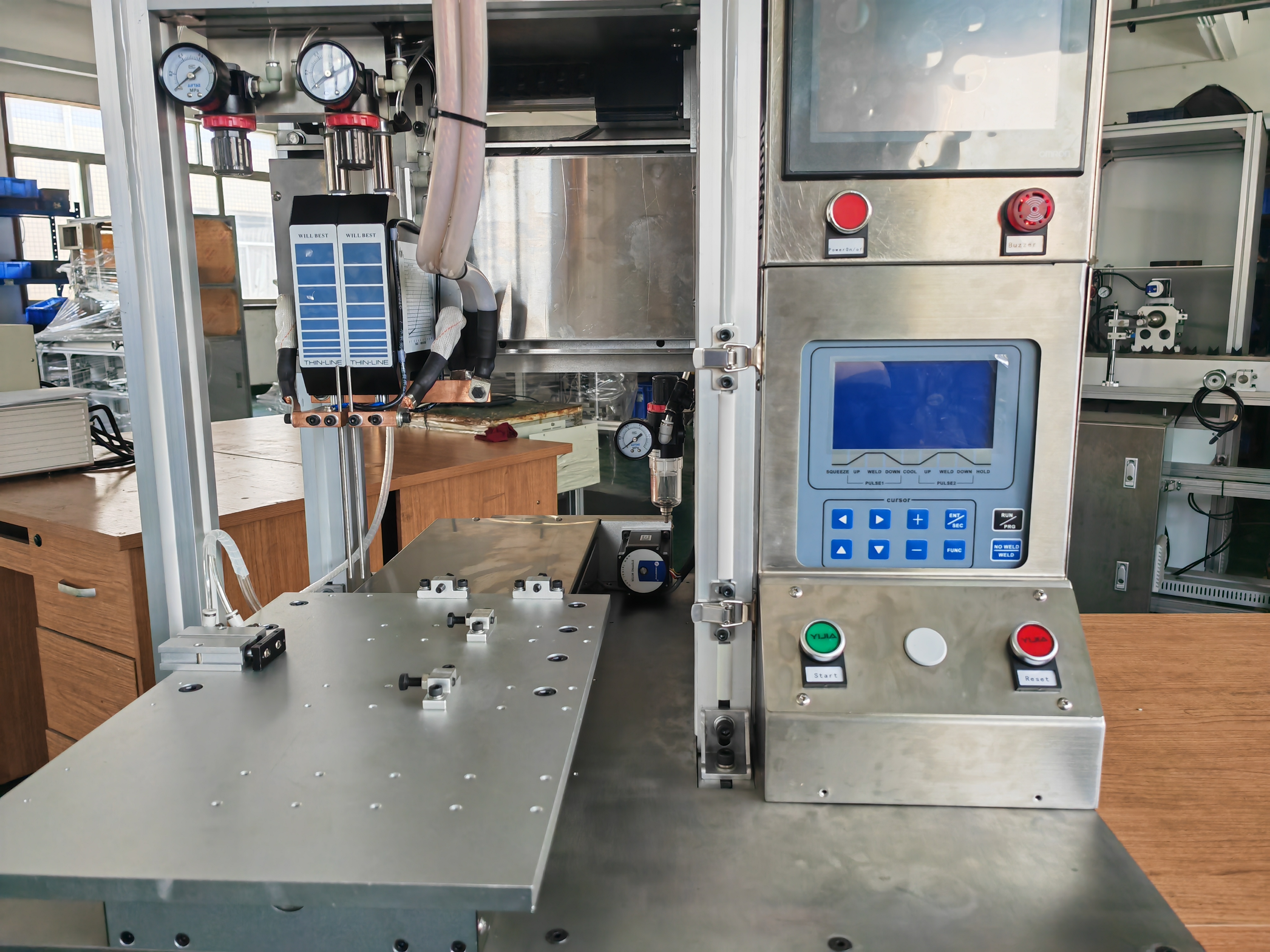

SHBA-42A Auto battery packs weld equipments

1.It's suitable for 18650/26650/21700 cell

2.7.5 inch touchable LCD

3.User-friendly design

4.PLC system control

5.Electrodes cooling device, prolongservice life

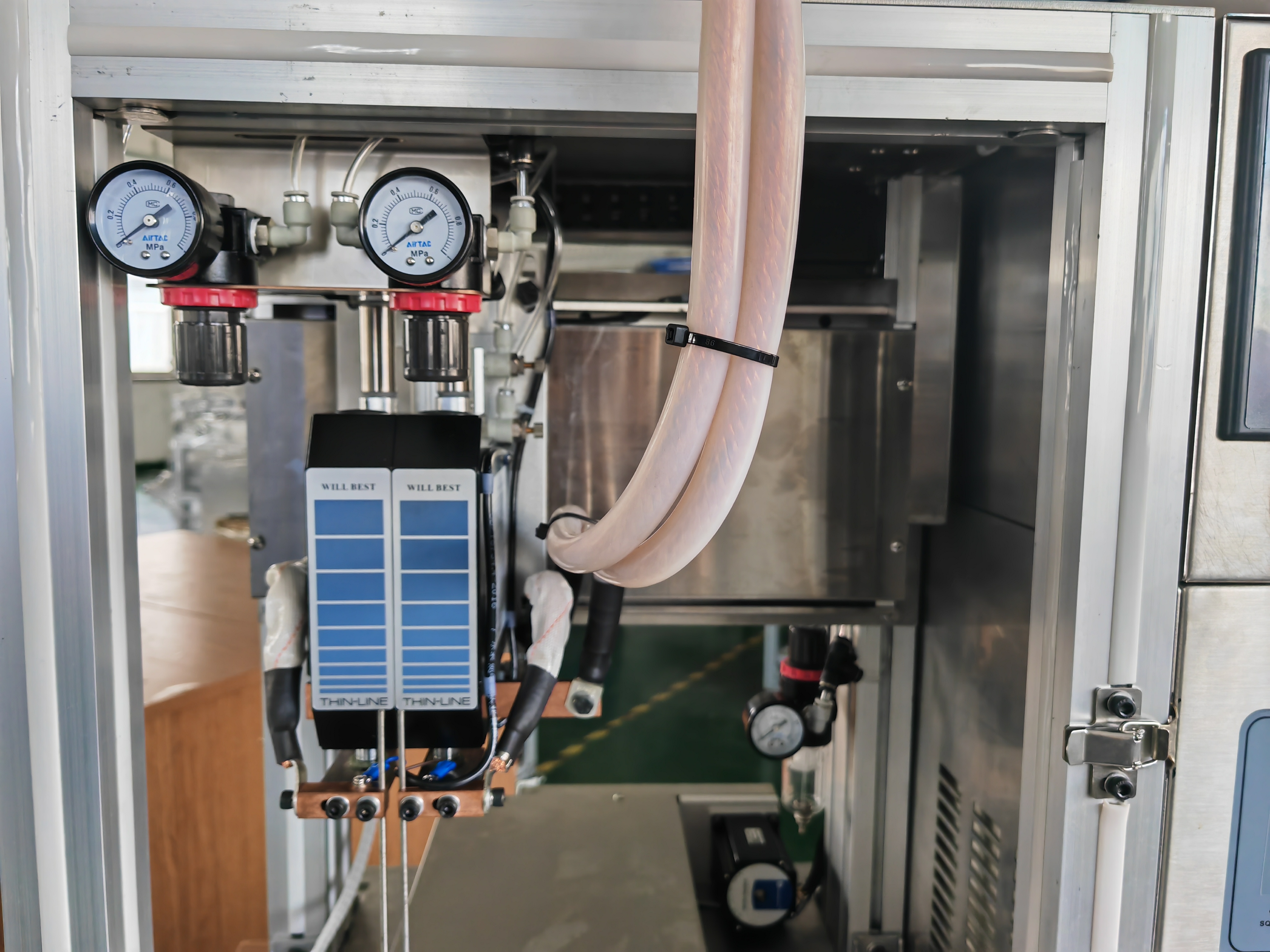

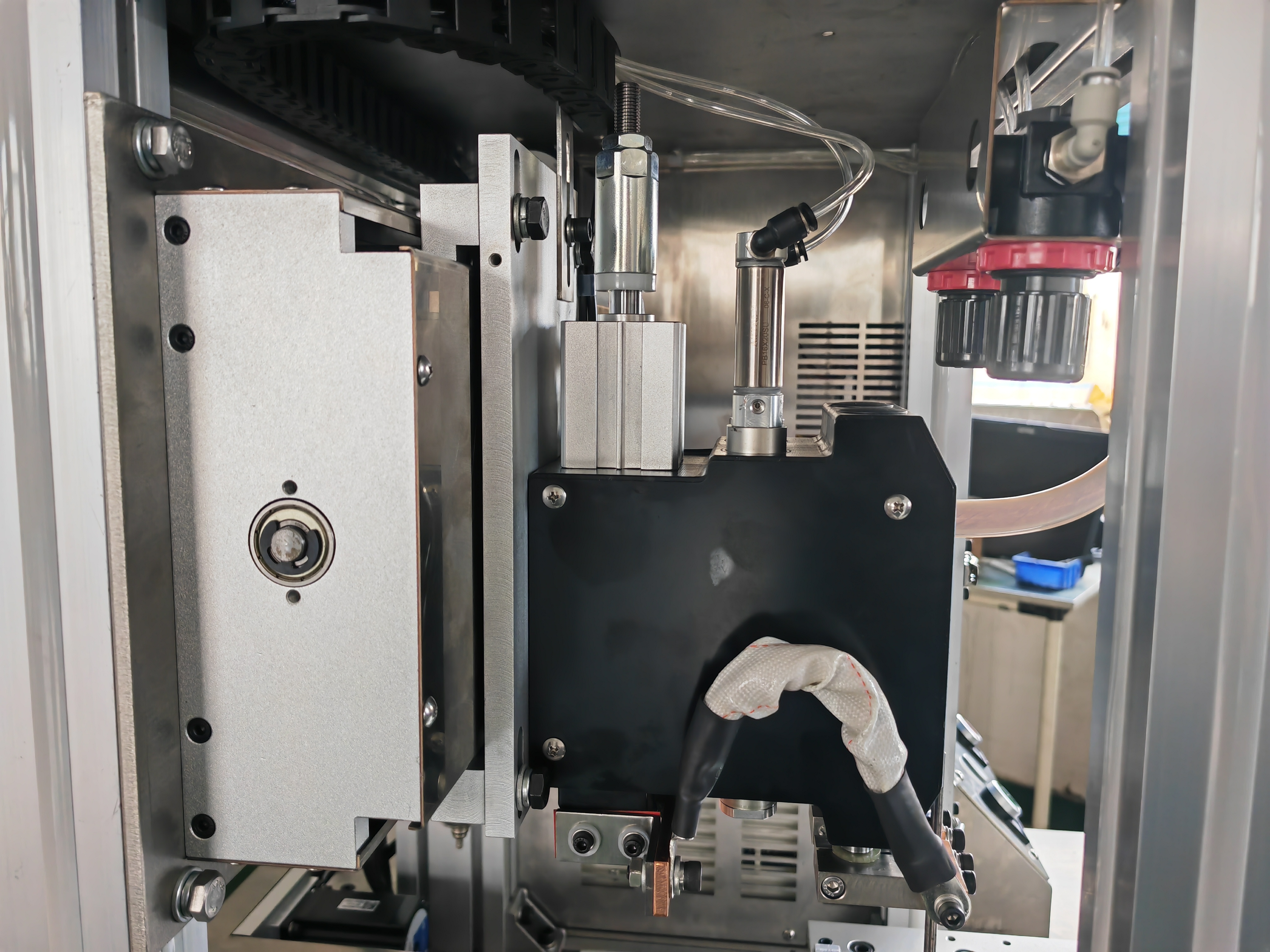

6.Pneumatic Control Pressure Welding Heads

7.Welding fault annunciator

8.Max.welding 230 cells

Product Details

weld video

https://www.ixigua.com/7242131413540176443?logTag=25309a6b675a3de66e4c

https://youtu.be/eIuKxAD_9nM







SHBA-42A Information

1.net weight:89KG
2.Size:820mm*730mm*1230mm
3.LCD dispaly
4.dual pluse welding power supply
5.300watts/second (Joule) capacitor discharge
6.110VAC,208VAC-230VAC,50/60Hz
7.Welding thinckness:0.05-0.6mm


UF40 is an inverter DC welding power supply, which integrates a large number of advanced functions and has

excellent welding ability. It can match various welding machine heads and be embedded into the automation

system.




UF40 Physical characteristics



SIZE:W=195mm,H=318mm,D=320mm Weight:9kg



SIZE:W=220mm,H=190mm,D=385mm Weight:15kg


Feature introduction

1.High frequency inverter makes welding more accurate and rapid.

2.Double pulse welding.

3.The welding time and energy of each pulse can be independently set with slow rise and slow fall functions.

4.Each pulse is monitored separately.

5.Each pulse is independently set with constant current / constant voltage / constant power.

6.Various welding working modes.

7.Welding result text / graphic display function.

8.Welding quality monitoring and result output function.

9.The welding results can be sent to the computer



UF40 Screen

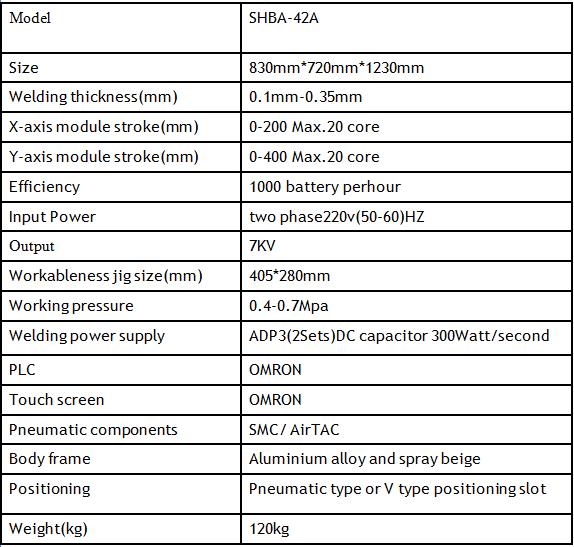

SHBA-42A Technical information
