Welding Power Supply

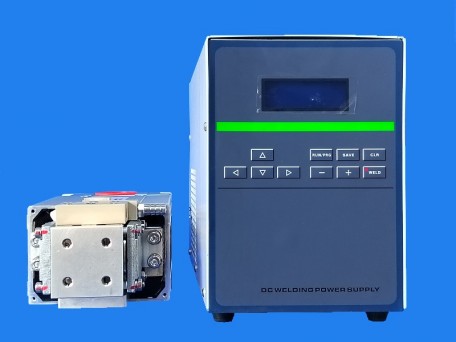

UF81 Medium Frequency Inverter Spot Welder
UF81 is a 1KHz, state of the art medium frequency inverter welding power supplu used to join small parts at high speed. When paired with the TR10KA welding transformer this unit is capable of maximum output 9000 Amps, Making it ideal for most resistive and conductive welding applications. It operates in constant current, voltage, power feedback or constant pulse width modes to address even the most challenging application or process conditions.
UF81 can address a wide range of applications including aircraft engine, solar cells, automotive electronic, battery tabs, battery pack assemble and more!
UF81 Features:
1.
Medium Frequency Inverter Welder DC Technoligy.
2.
Ultra high duty, low ripple 8000A output.
3.
Multiple welding energy control methods: constant current,voltage,power,pulse
width.
4.
Alpha-numeric User Interface.
5.
Automatic evaluation of welding quality and signal output for easy backend
processing in production
6.
Multiple welding working modes,such as general spot welding,seam
welding,remote control welding, etc
7. The
serial communication function can transmit the result datas of each time to
the computer
8.
Input/Output Communication Ports for Automation Integration
9. Can
be equiped with variety weld heads as a single operator benchtop welder

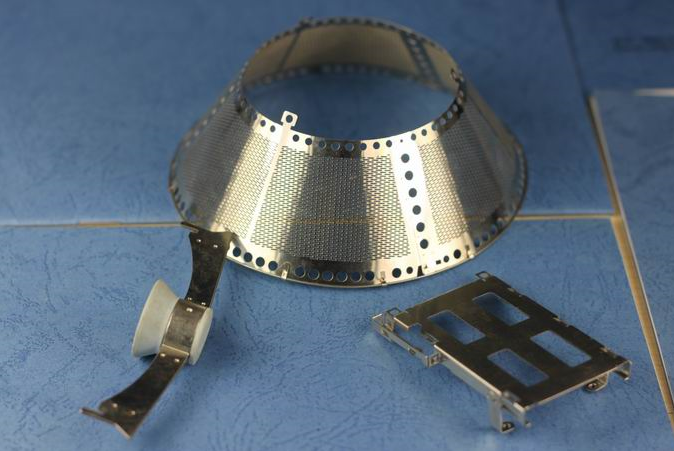

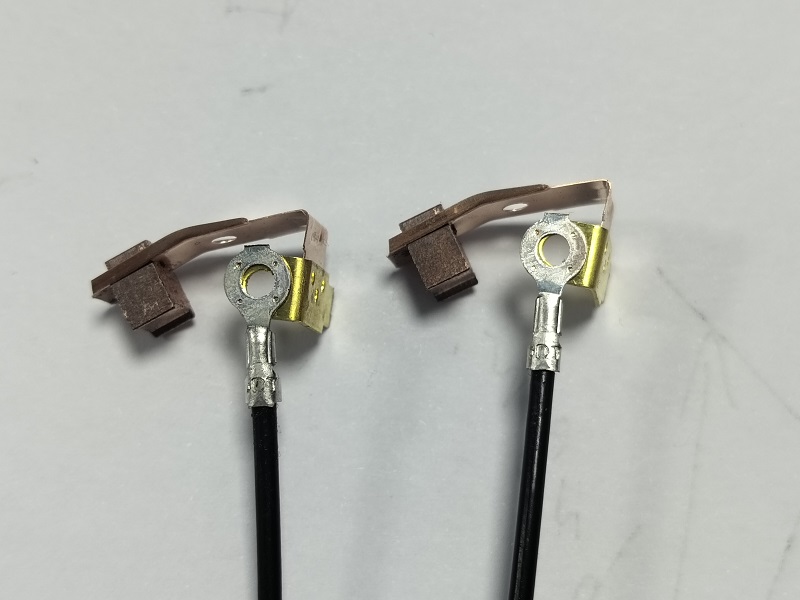

Welding Samples:
