Manual Battery Packs Spot Welding Machine

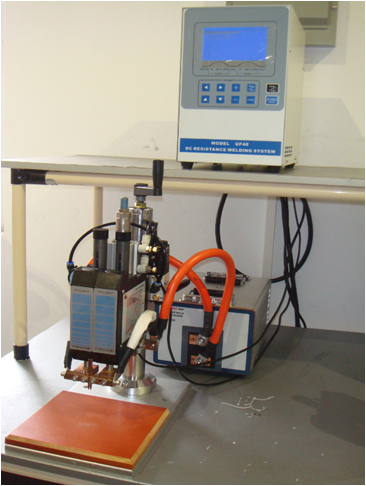

DC Resistance 4500A 4KHz Spot Welding System+Pneumatic Operated Parallel Precision Weldheads WBT-Q03
DC Resistance 4500A 4KHz Spot Welding System+Pneumatic Operated Parallel Precision Weldheads WBT-Q03

Micro Precision Resistance High Frequency Battery Packs weld machine

1.One set UF40 welding power source supply

(4500A,dual pulse,inverter DC welding power)

2.One set TR-4000A inverter welding transformer

3.One set WBT-Q03 parallelwelding head

(Air operated,net weight 10kg,320L*180W*450H)

4.two PCS power cables

5.Weld head switch connection cables

6.3mm/6mm holders and electrodes pcs foot pedal

Also,offer foot operated welding head

Product Details

Adjusting the height video

UF40 is an inverter DC welding power supply, which integrates a large number of advanced functions and has

excellent welding ability. It can match various welding machine heads and be embedded into the automation


UF40 Physical characteristics

SIZE:W=195mm,H=318mm,D=320mm Weight:9kg

SIZE:W=220mm,H=190mm,D=385mm Weight:15kg

Feature introduction

1.High frequency inverter makes welding more accurate and rapid.

2.Double pulse welding.

3.The welding time and energy of each pulse can be independently set with slow rise and slow fall functions.

4.Each pulse is monitored separately.

5.Each pulse is independently set with constant current / constant voltage / constant power.

6.Various welding working modes.

7.Welding result text / graphic display function.

8.Welding quality monitoring and result output function.

9.The welding results can be sent to the computer

UF40 Screen

WBT-Q03 Information

WBT-Q03 weld head has the advantages:

0.Easy up and down adjust handle, ajust the weld head and electrods height.

1.Electrode pressure adjustment;

2.Cylinder stroke adjustment;

3.Cylinder air flow speed adjustment;

4.Weld head up limited and down limited.

5.Pneumatic welding style and ensure the consistency of welding.

6.Firm welding point, avoid loose welding.

7.It has easy operation, low breakdown rate and quick service
