E-bike Battery packs spot welder

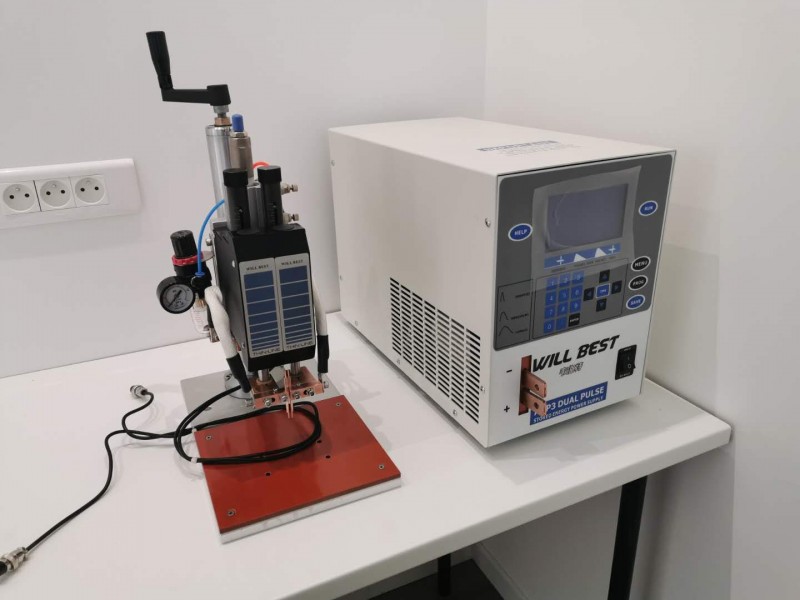

Capacitor discharge(DC),300Joule,dual pulse battery packs weld machine
Capacitor discharge(DC),300Joule,dual pulse battery packs weld machine
Battery packs welding system including as follows,
1.ADP3 weld power supply

(300Joule,dual pulse,stored energy welding power

can set and record 10 groups welding procedures)

2.WBT-Q03 welding head
(Air operated,net weight 11kg,340Lx200Wx475Hmm)
3.2 PCS power cables
4.Weld head switch connection cables
5.Offer 3mm electrodes
6.Offer 1pcs foot pedal switch
Product Details

CERTIFIED TO CE AND ROHS STANDARDS

Install video,https://youtu.be/ndJUPg3eALM

Setting video,https://youtu.be/3e36rVThd1Y

Welding video,https://youtu.be/ACkgmuec4Ns






ADP3 is a capacitive energy storage welding power with 300watts/second (Joule). Can effectively solve most precision metal

parts of the resistance welding problems and can set and record 10 groups welding procedures with its unique dual-pulse

welding. And has a special energy locking function which ensuring the power supply fluctuations will not lead to the

decline in the quality of welding.


Detailed list of features

0.High speed and high precision microprocessor provides highly stable repeated welding.

1.Compatible with mechanical and pneumatic welding heads.

2.Double pulse reduces welding spatter and effectively improves welding quality.

3.Three different welding methods (1) ordinary spot welding; (2) Roll welding (seam welding); (3) Continuous welding.

4.Friendly working interface and welding pulse graphic display function improve the convenience of debugging and observation.

5.Two way synchronous relay provides welding state synchronous signal, which is convenient for automation application.

6.The remote welding specification switching function facilitates the application of automation.

7.It has the switching function of welding polarity.

8.The built-in welding current, voltage and power monitoring function reports the welding quality of each welding spot.

9.The built-in welding counter can calculate all welding spots or qualified welding spots.

10.The function of variable welding procedure can not only compensate the wear of welding needles, but also apply to

the welding of welding joints under different conditions.

11.Finally, use the memory function of the program, and return to the last welding program every time you start the machine.

12.Compatible with primary or secondary foot switches.

13.Compatible with welding head with welding pressure switch and welding head without welding pressure switch.

14.The discharge switch can be mechanical or photoelectric.

15.Weak welding prevention function, effectively reducing welding waste.

16.The foot switch terminates the welding function and improves the reliability of welding.


Main circuit diagram



ADP3 Panel



ADP3 Screen








WBT-Q03 Information



WBT-Q03 weld head has the advantages:

0.Easy up and down adjust handle, ajust the weld head and electrods height.

1.Electrode pressure adjustment;

2.Cylinder stroke adjustment;

3.Cylinder air flow speed adjustment;

4.Weld head up limited and down limited.

5.Pneumatic welding style and ensure the consistency of welding.

6.Firm welding point, avoid loose welding.

7.It has easy operation, low breakdown rate and quick service



Important

When welding nicklel tags up to 0.2 mm thickness you can adopt 3 mm electrodes.

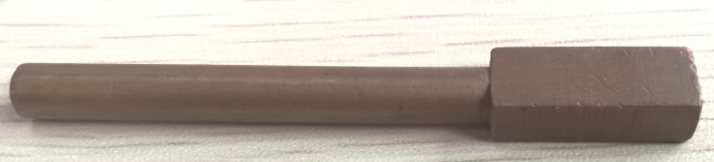

But thicker tags up to 0.4 or 0.5 mm (see picture below) need wider electrodes with flat welding surface.

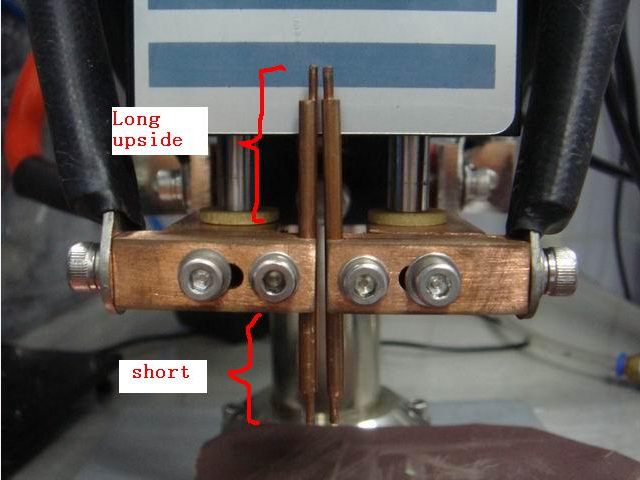

Electrode up distance

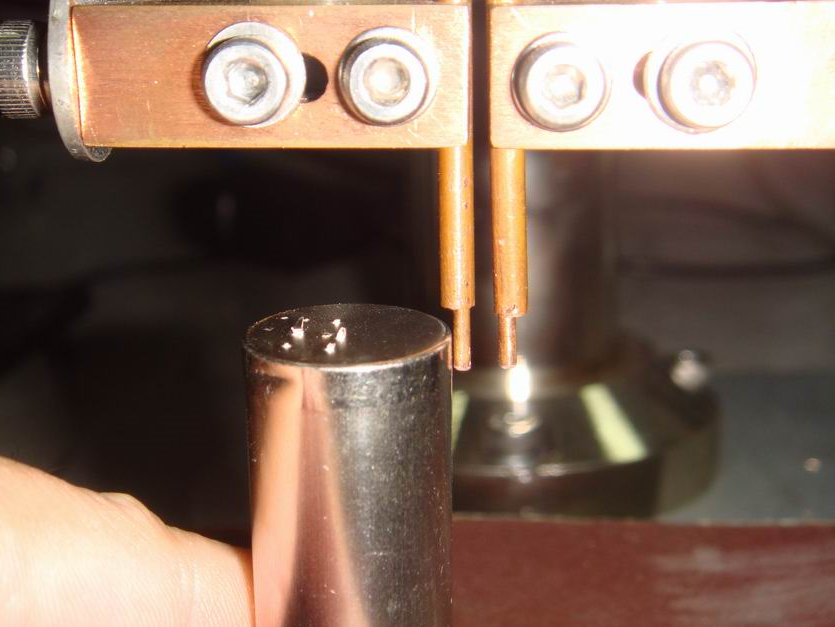

Electrode down distance


Installation -1


Installation -2
