Automatic Battery Packs Welding Equipment

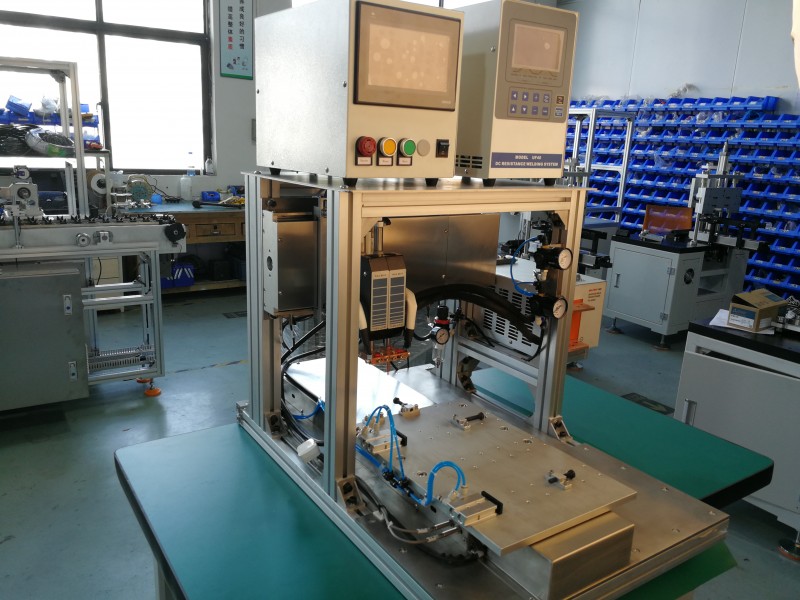

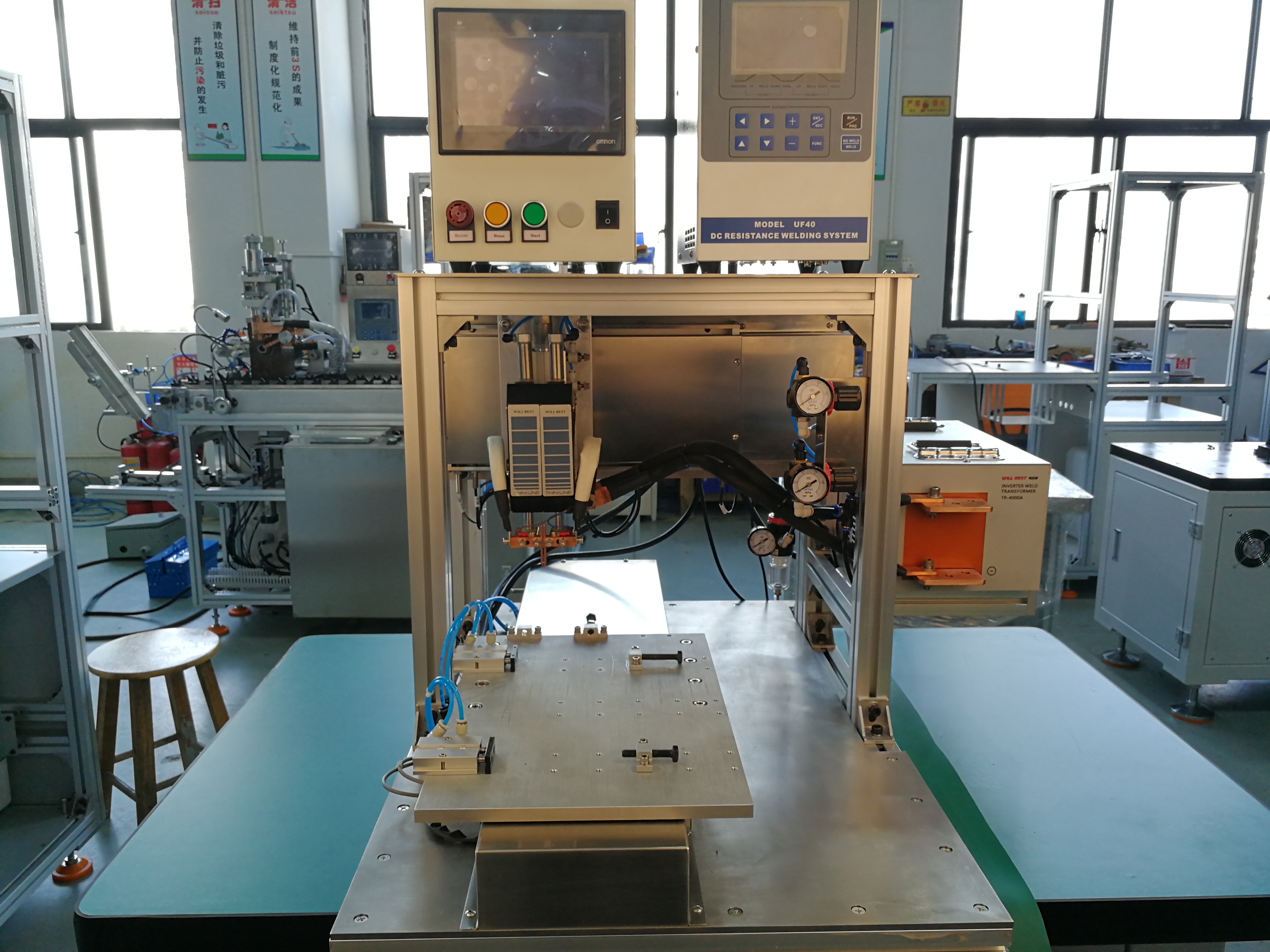

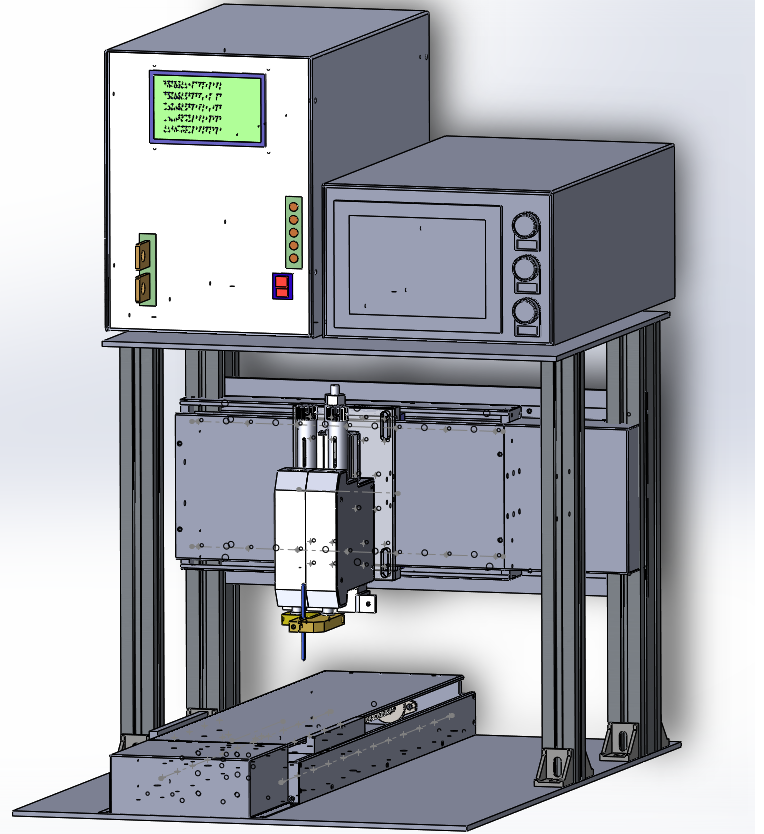

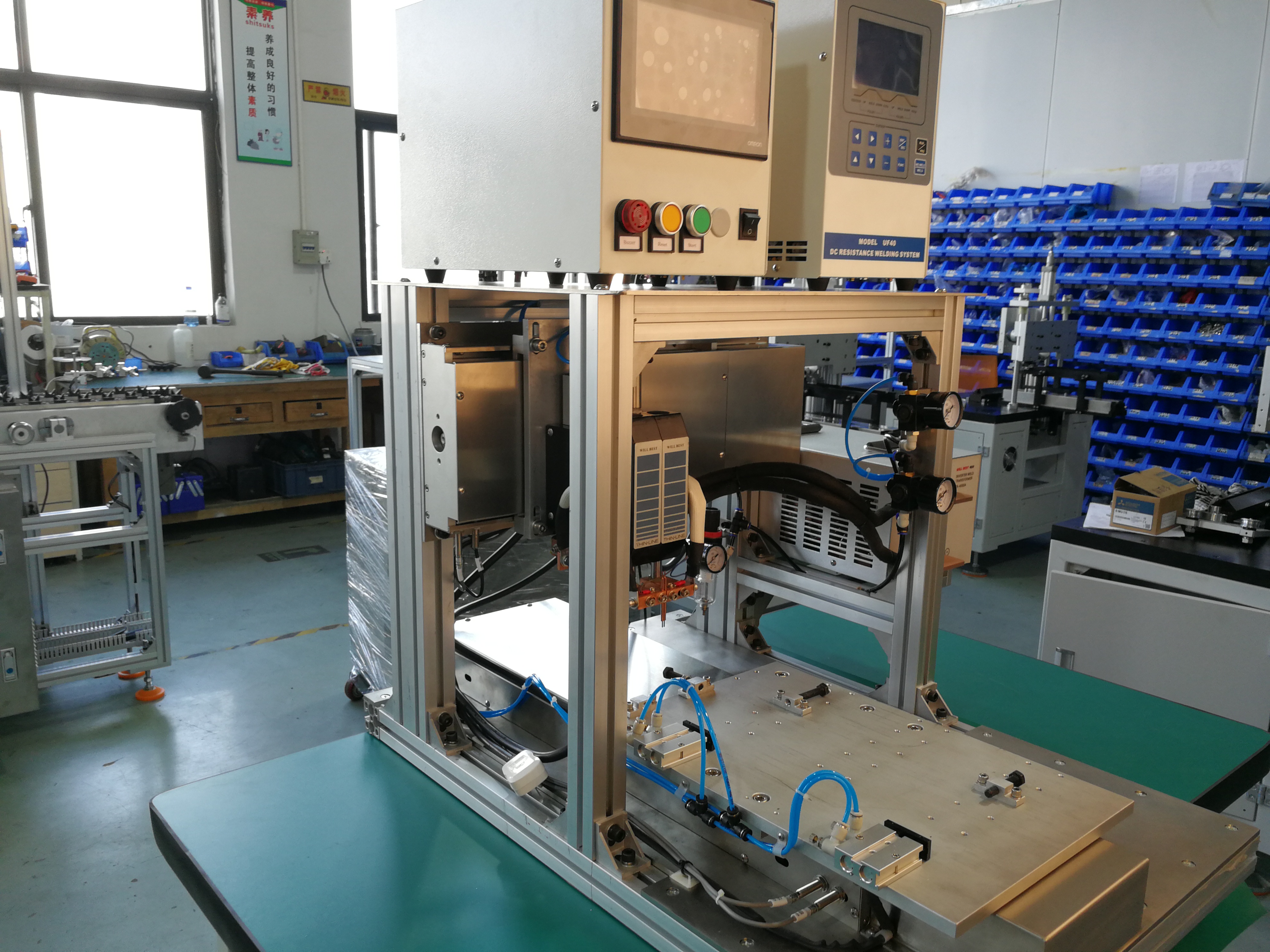

Automatic18650/26650 Battery Packs Weld Equipment single weld heads 4KHz
Automatic18650/26650 Battery Packs Weld Equipment single weld heads 4KHz

SHBA-42A Auto battery packs weld equipments

1.It's suitable for 18650/26650/21700 cell

2.7.5 inch touchable LCD

3.User-friendly design

4.PLC system control

5.Electrodes cooling device, prolongservice life

6.Pneumatic Control Pressure Welding Heads

7.Welding fault annunciator

8.Max.welding 230 cells

Product Details

weld video

https://youtu.be/eIuKxAD_9nM







SHBA-42A Information

1.net weight:89KG
2.Size:820mm*730mm*1230mm
3.LCD dispaly
4.dual pluse welding power supply
5.300watts/second (Joule) capacitor discharge
6.110VAC,208VAC-230VAC,50/60Hz
7.Welding thinckness:0.05-0.6mm


4KHz Micro precesion resistance high-Frequency Weld Power Features


1.High inverte frequency can control the welding energy much more accurate and rapid.
Having double-pulse welding function.
2.Each pulse has following functions: slowly rise, slowly drop, welding time, welding energy and set the monitor data.
3.Control modes:current control,power control,voltage control
4.Welding current monitor and NO GOOD alarm signal output function, check which welding dot was not standard.
5.With PLC output connector, better function to connect the automatic welding machine, faster and good welding.
6. Display the welding result as word and graphic form. Make debugging more simple and intuitive.
7. Precisely controlled repeatable waveform
8.Having the welding quality monitor and output functions can automatically check out the products in bad quality.


TR-4000A inverter weld transformer

1.Net weight:15kg
2.Size: 380mm*202mm*190mm
3.Cooling mode:Air
4.MAX. Welding current:5000A
5.Cyclic duration factor:35%
6.Input frequency 4KHz
7.Volume ratio of transformer: 60:1
