E-bike Battery packs spot welder

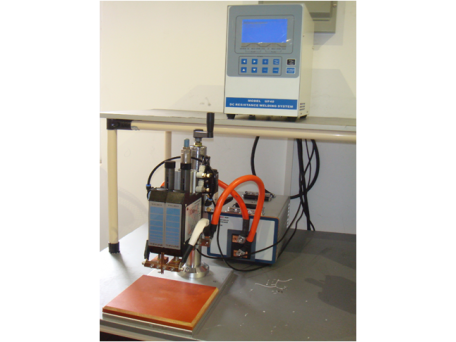

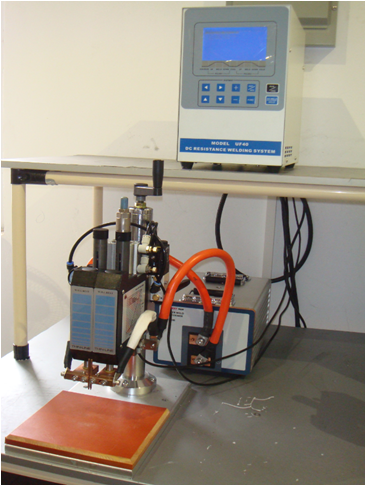

4KHz Micro Precision Resistance High Frequency  Battery Packs weld machine
4KHz Micro Precision Resistance High Frequency Battery Packs weld machine

Micro Precision Resistance High Frequency  Battery Packs weld machine

1.One set UF40 welding power source supply

(4500A,dual pulse,inverter DC welding power)

2.One set TR-4000A inverter welding transformer

3.One set WBT-Q03 parallelwelding head

(Air operated,net weight 10kg,320L*180W*450H)

4.two PCS power cables

5.Weld head switch connection cables

6.3mm/6mm holders and electrodes

7.one pcs foot pedal

Also,offer foot operated welding head

Product Details


UF40 Information


1.Net weight: 9KG KG

2.Size:400mm*200mm*330mm

3.LCD dispaly

4.DC Inverter resistence 4500A

5.Wires welding diameter 0.02—0.7mm,

6.Welding sheet thick 0.1mm—1.0mm

7.Cooling mode:Aircooling

8.Current monitor 0-10000A

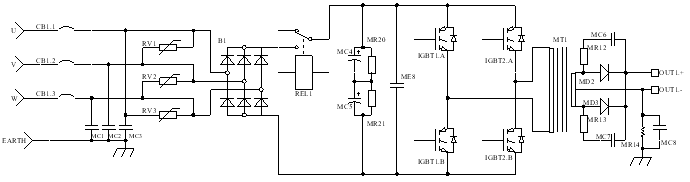

UF40 High-Frequency Inverter DC Welding Power Features,

1.High inverte frequency can control the welding energy much more accurate and rapid.

Having double pulse welding function.

2.Each pulse has following functions: slowly rise, slowly drop, welding time, welding energy and set the monitor data.

3.Control modes:current control,power control,voltage control.

4.Welding current monitor and NO GOOD alarm signal output function, check which welding dot was not standard.

5.With PLC output connector, better function to connect the automatic welding machine, faster and good welding.

6.Display the welding result as word and graphic form. Make debugging more simple and intuitive.

7.Precisely controlled repeatable waveform.

8.Having the welding quality monitor and output functions can automatically check out the products in bad quality.



TR-4000A information

1.Net weight:15kg

2.Size: 380mm*202mm*190mm

3.Cooling model:air cooling

4.Max.welding current:4500A

5.Cyclic duration factor:35%

6.Input frequency:4khz

7.Volume ratio of transofrmer:60:1


WBT-Q03 Information


1.Net weight:11kg

2.Size:340*200*475mm

3.Spring force:4kg/8kg

4.Thinline:120mm

5.Cylinder stroke sjustable

6.Electrode:3mm/6mm

7.Driving method:pneumatic

8.Magnetive valve:24v(DC)/220V(AC)
