Thin wire&Thin metal sheet&Enameled wire micro precision welder

Thin Sheet Spot Welder, Motor Rotor Wire Welder 4KHz
Thin Sheet Spot Welder, Motor Rotor Wire Welder 4KHz

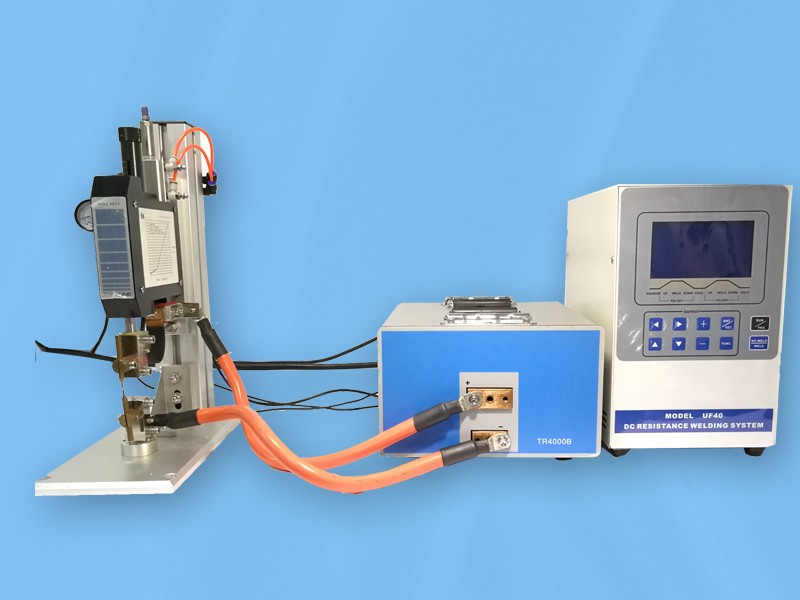

High-Frequency Inverter DC Welding Machine,

1.One set UF40 welding power source supply

(4500A,dual pulse,inverter DC welding power)

2.One set TR-4000A inverter welding transformer

3.One set WBT-Q01 single welding head

(Air operated,net weight 10kg,320L*180W*450H)

4.two PCS power cables

5.Weld head switch connection cables

6.3mm/6mm holders and electrodes

7.one pcs foot pedal

Also,offer foot operated welding head




Product Details

Welding video

Welding sensor,https://youtu.be/_eNqnMFGOzI

Welding Multi-stranded copper wire,https://youtu.be/x0AYF6wMoro

Welding cooper sheet+wires,https://youtu.be/Je038DG8FMI



Features

There are a number of added features that include, but not limited to:

High-inverte Frequency to control the welding energy accurately and rapid

Thin Sheet Spot Welder comes with double-pulse welding function with functions in each pulse that include slowly rise, drop, welding

time, welding energy and set the monitor data

Thin Sheet Spot Welder comes with different control modes like current control, power control and voltage control

Each device comes with a display to show welding results in word and graphic form – making debugging simple and intuitive

They come with welding quality monitor and output functions – automatically check out the products in bad quality too

You will get a lot more from the selected and advanced thin sheet spot welder – that are easy to use and available at competitive rates.

We ensure you on-time delivery and provide them with complete satisfaction. You can check the demo; while we offer you customs

clearance, documentation and safe and secure delivery options.

Choose the best model of high-grade thin sheet spot welder and get them delivered to your address in safe and secure way.



UF40 Information

1.Net weight: 9KG

2.Size:400mm*200mm*330mm

3.LCD dispaly

4.DC Inverter resistence 4500A

5.Wires welding diameter 0.02—0.7mm,

6.Welding sheet thick 0.1mm—1.0mm

7.Cooling mode:Aircooling

8.Current monitor 0-10000A



UF40 Features

1.High inverte frequency can control the welding energy much more accurate and rapid.

Having double pulse welding function.

2.Each pulse has following functions: slowly rise, slowly drop, welding time, welding energy and set the monitor data.

3.Control modes:current control,power control,voltage control.

4.Welding current monitor and NO GOOD alarm signal output function, check which welding dot was not standard.

5.With PLC output connector, better function to connect the automatic welding machine, faster and good welding.

6.Display the welding result as word and graphic form. Make debugging more simple and intuitive.

7.Precisely controlled repeatable waveform.

8.Having the welding quality monitor and output functions can automatically check out the products in bad quality.



TR-4000A transformer information

1.Net weight:15kg

2.Size: 380mm*202mm*190mm

3.Cooling model:air cooling

4.Max.welding current:4500A

5.Cyclic duration factor:35%

6.Input frequency:4khz

7.Volume ratio of transofrmer:60:1


WBT-Q01 Information


1.Net weight:10kg

2.size:320*180*450mm

3.Spring force:0-8kg

4.Thinline:145mm

5.Electrodes:3/6/8mm

6.Driving method:pneumatic

7.Magnetic valve:24(DC)/220(AC)






Electrodes distance



If welding the coil wire,use the foot operated welding and needle type electrodes.



Adjustable Spring



UF40 Details information



Setting the welding parameter

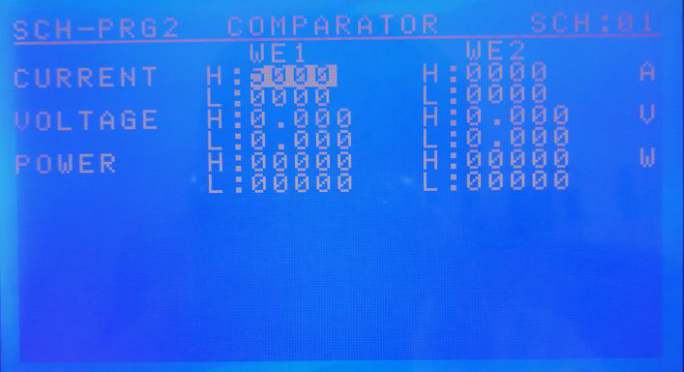

Welding monitor

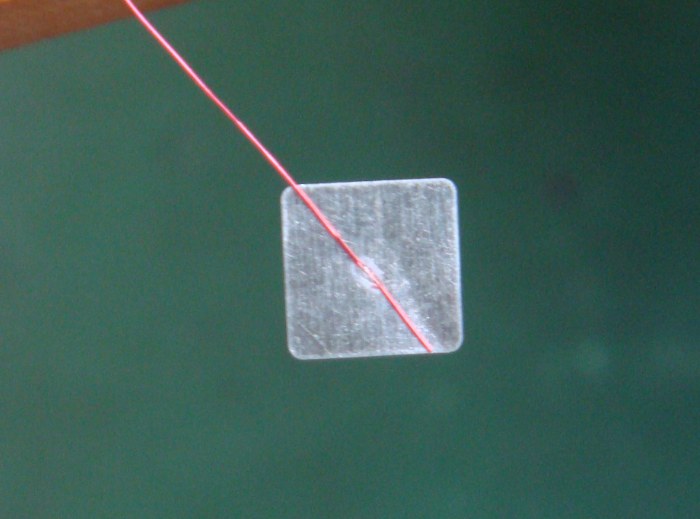

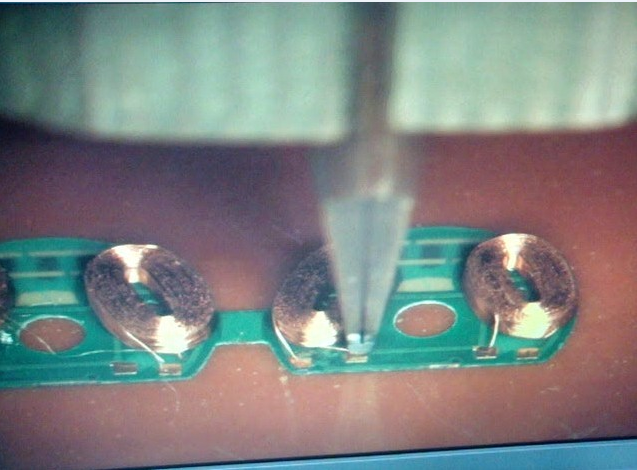

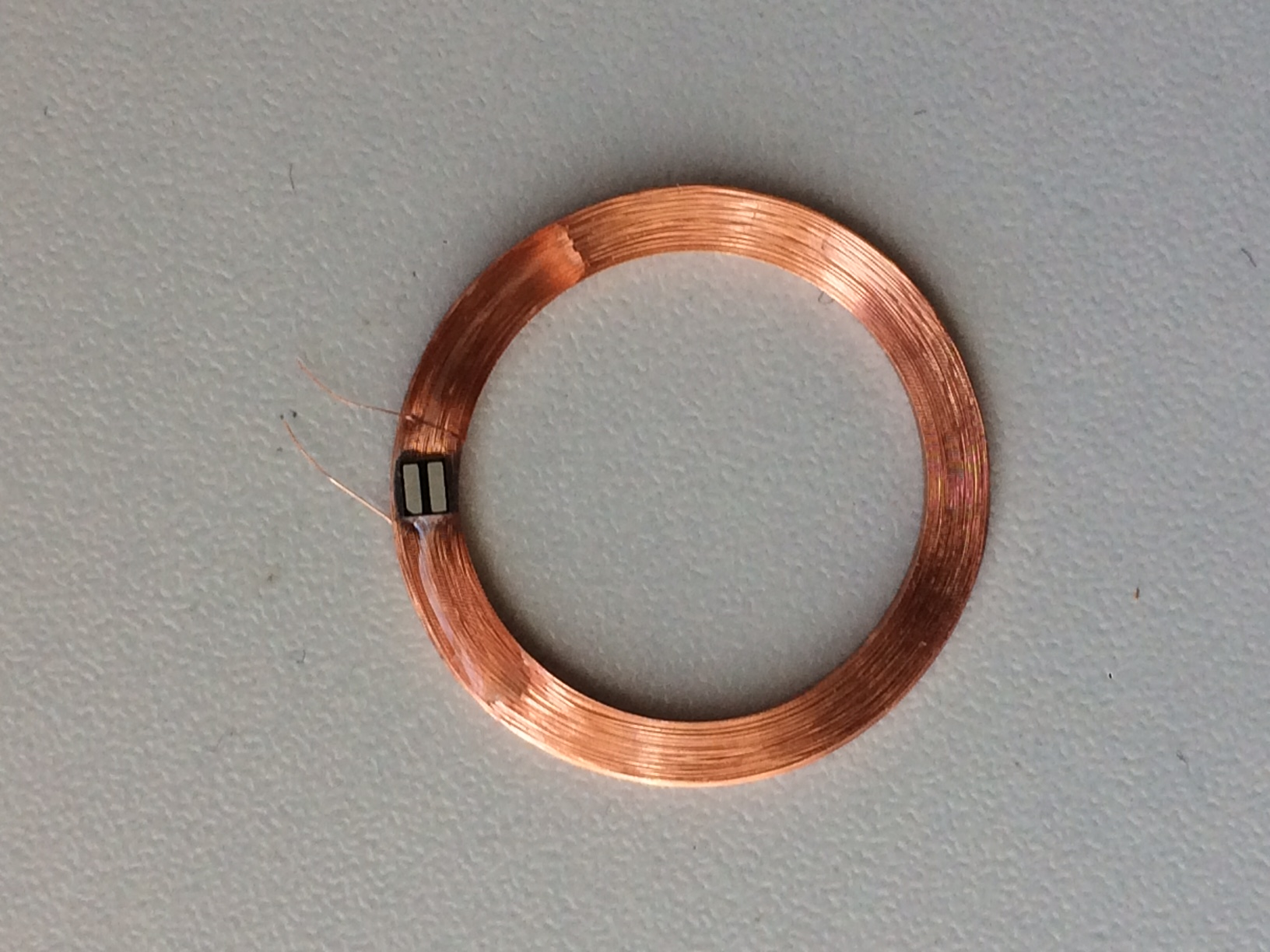

Application

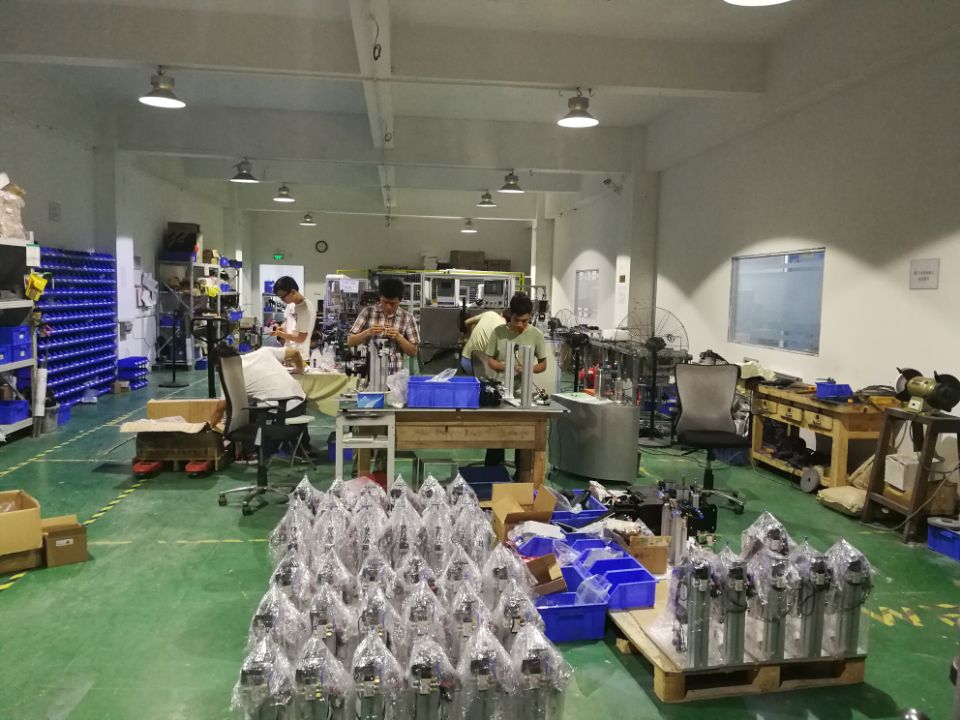

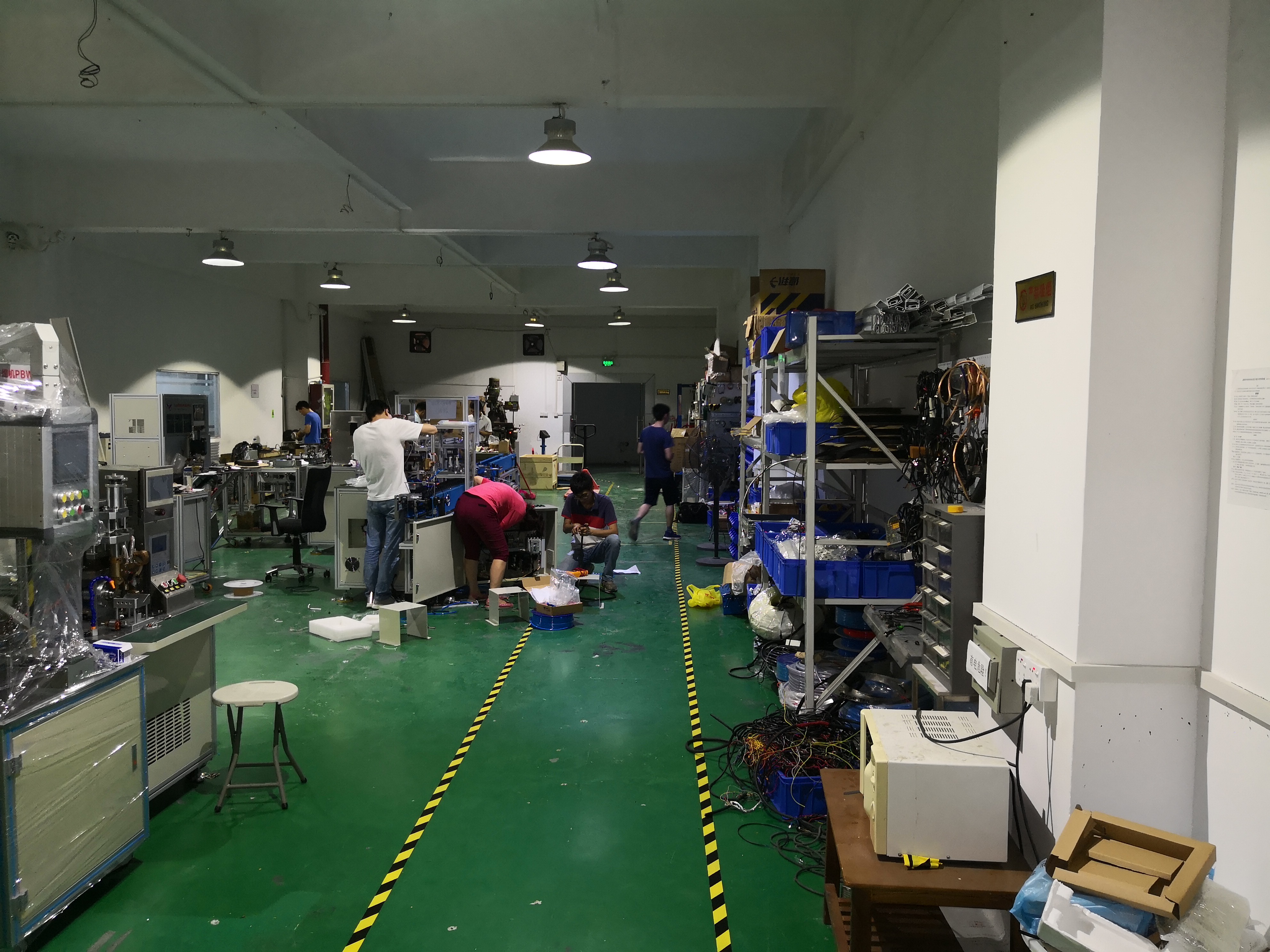

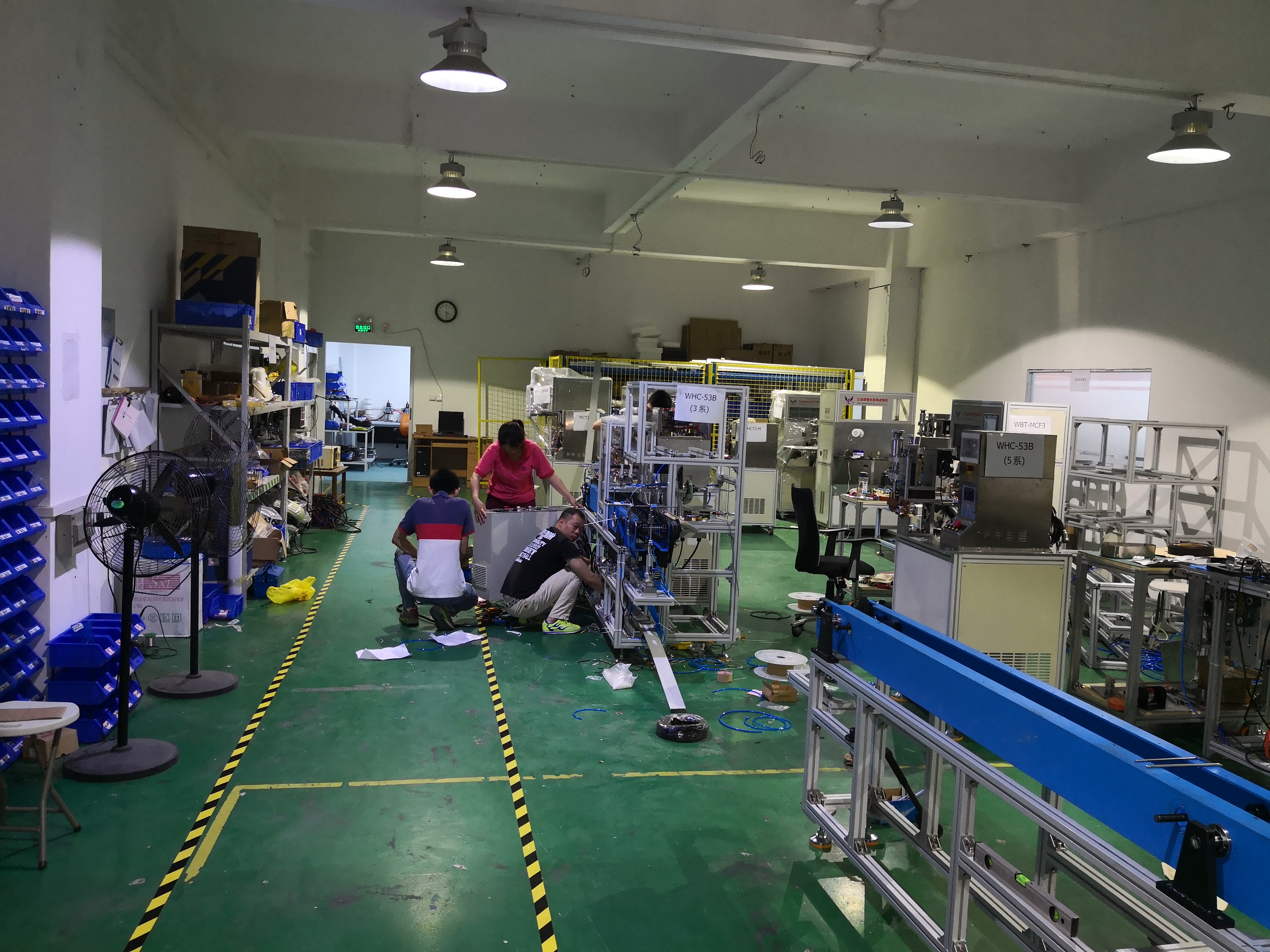

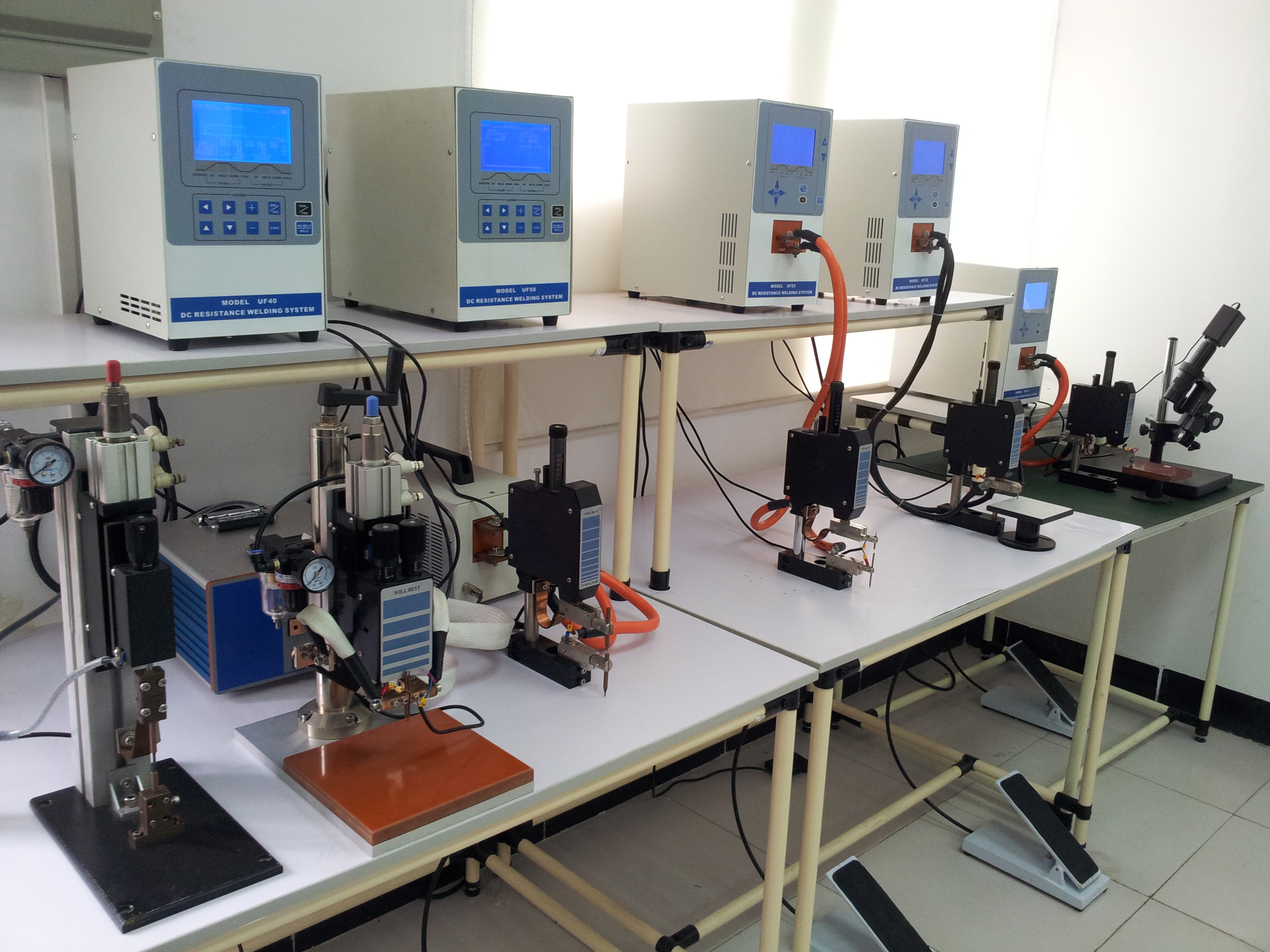

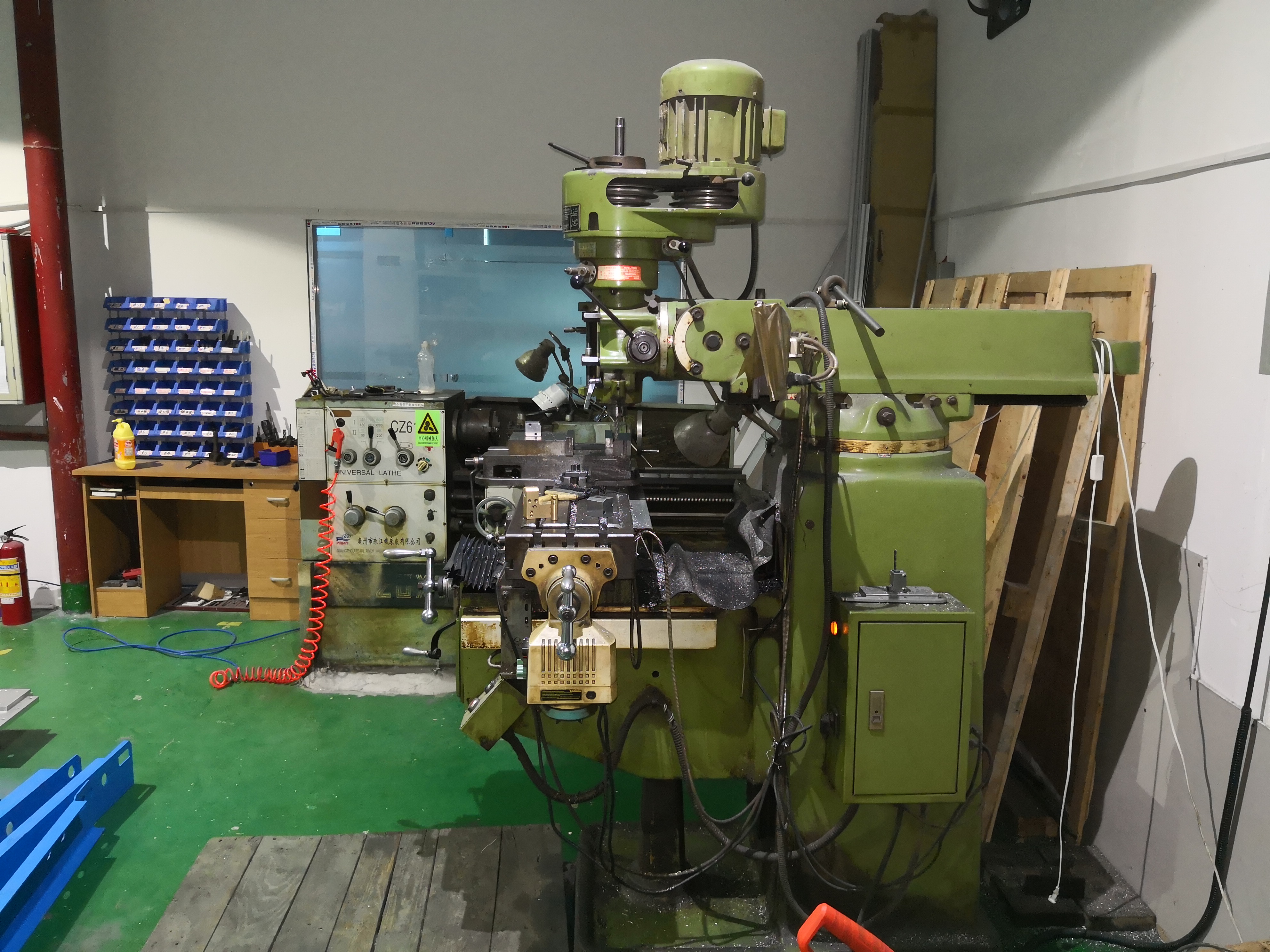

Company photos
