Welding Power Supply
DC Resistance 4500A 4KHz Spot Welding System

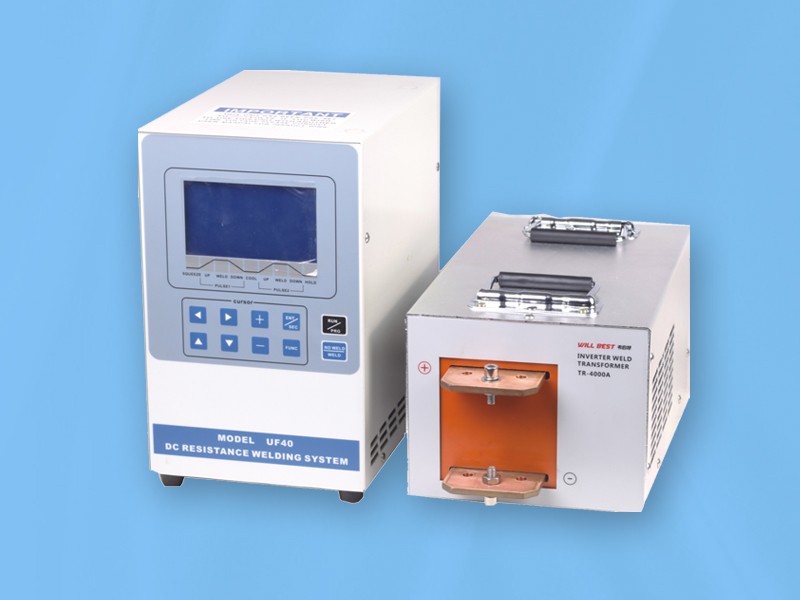

UF40 High-Frequency Inverter DC Welding Power 4KHz
1.Net weight: 9KG
2.Size:400mm*200mm*330mm
3.LCD dispaly
4.Inverter DC discharge 4500A
5.Wires welding diameter 0.02—0.7mm,
6.Sheet thick from 0.1mm—1.0mm
7.Cooling mode:Aircooling
8.Current monitor 0-10000A
CERTIFIED TO CE AND ROHS STANDARDS
Welding video
https://youtu.be/_eNqnMFGOzI
https://youtu.be/x0AYF6wMoro
https://youtu.be/Je038DG8FMI
UF40 is an inverter DC welding power supply, which integrates a large number of advanced functions and has
excellent welding ability. It can match various welding machine heads and be embedded into the automation
system.
UF40 Physical characteristics
SIZE:W=195mm,H=318mm,D=320mm Weight:9kg
SIZE:W=220mm,H=190mm,D=385mm Weight:15kg
Feature introduction
1.High frequency inverter makes welding more accurate and rapid.
2.Double pulse welding.
3.The welding time and energy of each pulse can be independently set with slow rise and slow fall functions.
4.Each pulse is monitored separately.
5.Each pulse is independently set with constant current / constant voltage / constant power.
6.Various welding working modes.
7.Welding result text / graphic display function.
8.Welding quality monitoring and result output function.
9.The welding results can be sent to the computer
UF40 Screen
