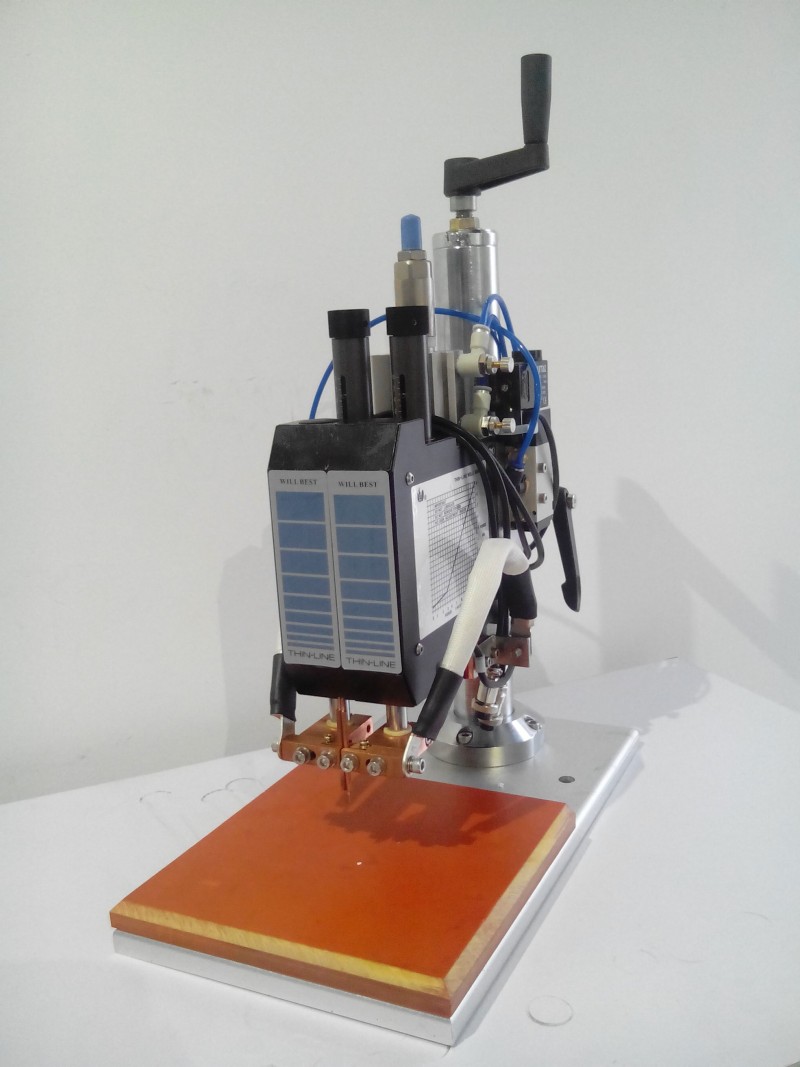

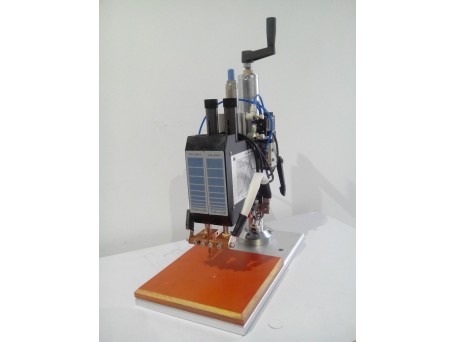

Pneumatic Operated Parallel Precision Weld Heads WBT-Q03
Pneumatic Operated Parallel Precision Weld Heads WBT-Q03

WBT-Q03 Precision Parallel pneumatic drive weld heads

1.Net weight:11KG

2.Size:340mm*200mm*475mm
3.Spring force:4kg/8kg
4.Thinline:120mm
5.Cylinder Stroke adjustble
6.Electrodes:3mm/6mm(diameter)
7. Driving method: Pneumatic
8.Magnetic valve:24V(DC)/220(AC)



Product Details

CERTIFIED TO CE AND ROHS STANDARDS

weld video

https://youtu.be/2iT3JVVuuwg

https://youtu.be/9dIGpT-sj_k


WBT-Q03 Features

1.Easy up and down adjust handle, ajust the weld head and electrods height.
2.Electrode pressure adjustment;
3.Cylinder stroke adjustment;
4.Cylinder air flow speed adjustment;
5.Weld head up limited and down limited
6.Good cycle welding (over welding 4000pcs/per day)
7.Pneumatic welding style and ensure the consistency of welding.
8.Firm welding point, avoid loose welding.
9.It has easy operation, low breakdown rate and quick service.
