Thin wire&Thin metal sheet&Enameled wire precision spot welder

Micro precision welding equipment,Chip spot welder/Resistor spot welder\Sensor spot welder
Micro precision welding equipment,Chip spot welder/Resistor spot welder\Sensor spot welder

Medium-Frequency Inverter DC Welding Machine,

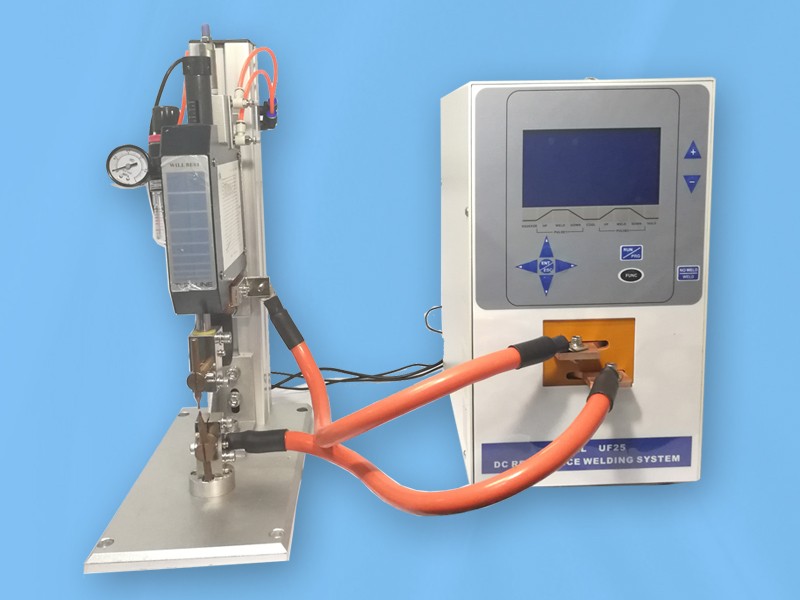

1.UF25 welding power supply
(2500A,dual pulse,inverter DC welding power)
2.One set WBT-Q01 single welding head
(Air operated,net weight 10kg,320L*180W*450H)
3. 2 PCS power cables
4.Weld head switch connection cables
5.3mm/6mm holders and electrodes
6. one pcs foot pedal

Also,offer foot operated welding head

Product Details

CERTIFIED TO CE AND ROHS STANDARDS

Weld video

weld the wires on the PCB board,https://youtu.be/pqd5HKokYKM

weld 0.05mm cooper wires +0.1cooper sheet,https://youtu.be/5qq6DdultOU

weld CR2032 Battery,https://youtu.be/QZWciVmdSh8











UF25 is a double pulse inverter DC welding power supply with excellent welding ability. The main key components such as IGBT and ETA circuit breaker are imported from Germany to ensure high quality. When welding the battery connector, it has the characteristics of short welding time (millisecond level), low calorific value, little damage to the battery, good appearance of the solder joint, high welding tensile strength, strong welding stability, high control accuracy, and low welding defect rate.


UF25 Feature introduction
High inverter frequency makes the control of welding energy more accurate and rapid.
With double pulse welding function.
Each pulse has the functions of slow rise, slow fall, welding time, welding energy and monitoring data setting.
A variety of welding energy control modes, constant current / constant voltage / constant power, to meet the welding needs of different shapes of materials
Various welding working modes, ordinary spot welding, roll welding / seam welding, continuous welding, double welding head control, PLC control.
The welding results are displayed in text and graphics, which makes the debugging more intuitive and simple.
It has the function of welding quality monitoring and result output, and automatically detects unqualified products.
Serial communication function.


1.Parameter
Power supply: single phase, 220ACV/10A, Standby power consumption: 30W, maximum welding current 2400A, Preloading time 0 ~ 999ms, preheating ramp 0 ~ 49 , pulse interval 0 ~ 99ms , pressure maintaining time 0 ~ 999ms, Overall dimension (length: 200.2mm/ width: 360.5mm/ height: 330.5mm) , weight: 14.2kg


2.Three welding energy control modes, constant current / constant voltage / constant power, meet the welding requirements of different shapes of materials.
(set welding current) ? Range 0~2400a, adjustment accuracy 1a.
(set welding voltage) ? The range is 0~5.00v, and the adjustment accuracy is 0.01V.
(set welding power) ? The range is 0~2500w, and the adjustment accuracy is 5W.


3.Five welding working modes, ordinary spot welding, roll welding / seam welding, continuous welding, double welding head control, PLC control mode
General spot welding basic welding working mode:
used for general single point welding. The welding process can be set as single pulse or double pulse as required, and all welding parameters and monitoring parameters are valid. The welding head can use pneumatic, electric, or mechanical mechanisms.


Roll welding / seam welding working mode:
it is applicable to continuous welding on a single workpiece to make the welding points continuous so as to form a weld. In this working mode, special seam welding head and corresponding welding head controller must be used together. The pressure switch on the welding head or the welding head controller can be used to control UF25 discharge welding.


Continuous welding mode:
 it is applicable to the requirements of high-speed welding of multiple welding joints with the same requirements. Using this working mode, the pneumatic welding machine head must be equipped with a single-stage foot switch for welding control. The function of changing the specification cannot be used in the welding process, and each welding specification can only be set as a single pulse


Working mode of double welding heads:
one UF25 is matched with two pneumatic welding heads for single standard time-sharing single point welding. This function effectively improves the use efficiency of UF25 and reduces the investment cost of equipment. In this mode, a UF25 can be equipped with two sets of pneumatic welding heads, each of which needs a pneumatic welding head, a discharge switch and a foot switch; Both sets of welding heads use the same welding specification for time-sharing welding (only one set of welding mechanism works at the same time), and single or double pulses can be used.


The PLC controller controls the working mode:
The UF25 is used as a separate welding power module, and its work is controlled by the main controller in the automatic welding system, such as controlled discharge welding, controlled transformation of welding specifications, feedback of welding results to the main controller and other functions. Due to the special interface with the upper computer, the difficulty of uf25 embedding into the automation system is greatly reduced, and the working speed, welding performance, quality monitoring and processing ability of the automation system can be effectively improved.


4.Welding quality monitoring and result output function, automatically detect unqualified products.
Description of welding monitoring parameter setting
"Welding monitoring parameter setting" is used to set the parameters for monitoring and evaluating the welding results, and is used for online detection of welding quality. This function evaluates the quality of each welding, and then provides an alarm / prompt signal (on the input / output interface) for unqualified welding. It is a powerful tool for quality monitoring and management in the production process.


5. Accuracy control of welding process and consistency of welding effect.
a.
UF25 DC inverter welding power supply, the core welding control components and modules adopt European famous brands (non domestic), which is highly professional, and provides a guarantee for the reliability and high accuracy of welding. It is not affected by the voltage fluctuation of the power grid, the output current and voltage are stable, and the welding stability of batch products is improved. LCD can intuitively display each welding waveform. If the welding parameters are adjusted or a welding is unstable or unsatisfactory, the welding waveform will also display abnormally for analysis and resetting. Domestic military enterprises, such as aerospace enterprises, also use our inverter power supply and welding head. Our major domestic customers also use UF25/UF40 inverter DC power supply to configure automatic welding equipment.

b.
Due to the excellent control of welding current output and welding time, when welding products, it can achieve the effects of low calorific value of the workpiece, no yellowing and blackening of the surface of the weldment, no splashing of sparks, and firm welding. Compared with energy storage spot welding machine and AC machine, it is more suitable for precision welding of small workpieces.

c.
The welding pulse input slow rise and slow fall function of UF25, as well as the coordination of the interval time and pressure holding time between the two pulses, carefully adjust the welding parameters, and then match the good welding head and welding needle, which can make the welding effect more perfect.


UF25 Screen





WBT-Q01 Information


1.Net weight:10KG
2.Size: 320mm*180mm*450mm
3.Spring force:0-8kg
4.Thinline:145mm
5.Electrodes:3mm/6mm(diameter)
6.Driving method: Pneumatic
7.Magnetic valve:24V(DC)/220(AC)





Electrodes distance



When the marterial is high conductive(such as copper,brass) the marterial of electrodes

need to using poor conductive(such as tungsten, molybdenum,tungsten copper)



Adjustable Spring




Application
