General Welding Power Supply
Capacitor discharge(DC),150Joule,dual pulse weld power supply

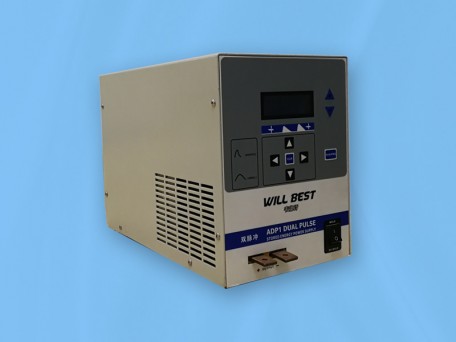

ADP1 weld power supply information
1.Net weight:28KG
2.Size:450mm*210mm*287mm
3.LCD dispaly
4.dual pluse welding power supply
5.150watts/second (Joule) capacitor discharge
6.110VAC,208VAC-230VAC,50/60Hz
7.Welding thickness 0.1-0.2mm
8.Can using air driving or foot driving weld heads
CERTIFIED TO CE AND ROHS STANDARDS
Install video,https://youtu.be/NloH3lkRVQU
Setting video,https://youtu.be/duyKUPDszWU
ADP1 is a 125 Joule energy storage welding power supply. ADP1 has double pulse welding mode and 8 groups of
welding procedures.
Double pulse welding can improve welding quality and reduce welding spatter. During welding, two welding
pulses with different energy are used. The first pulse is used to remove the indicated coating or oxide of the
workpiece, and the workpiece is in good contact with the welding electrode. The second pulse is used to weld
the workpiece.
Detailed list of features
0.High speed and high precision microprocessor provides highly stable repeated welding.
1.Compatible with mechanical and pneumatic welding heads.
2.Double pulse welding can reduce welding spatter and improve welding quality.
3.Friendly working interface.
4.Built in welding counter.
5.Return to the last used welding procedure every time you start the machine.
6.It has primary or secondary foot switch control function.
7.Compatible with welding head with welding pressure switch and welding head without
welding pressure switch.
ADP1 physical characteristics
SIZE:287*210*450MM Weight:18kg
Main circuit diagram
ADP1 Screen
ADP1 is divided into 2 working states: the 'RUN' state and the 'PRG' state.
In the "RUN" state for welding operation,
In the 'PRG' state for setting the welding parameters
SQ(SQUEEZE TIME)setting scop is 0-9.99seconds
HLD(HOLD TIME) setting scop is 0-9.99seconds
