Welding Power Supply

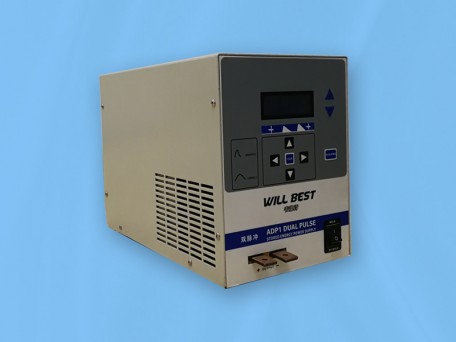

DC Capacitor discharge150Joule,dual pulse weld power supply ADP1
DC Capacitor discharge150Joule,dual pulse weld power supply ADP1

ADP1 weld power supply information

1.Net weight:28KG
2.Size:450mm*210mm*287mm
3.LCD dispaly
4.dual pluse welding power supply
5.150watts/second (Joule) capacitor discharge
6.110VAC,208VAC-230VAC,50/60Hz
7.Welding thickness 0.1-0.2mm
8.Can using air driving or foot driving weld heads

Product Details

CERTIFIED TO CE AND ROHS STANDARDS

Install video,https://youtu.be/NloH3lkRVQU
Setting video,https://youtu.be/duyKUPDszWU


ADP1 is a 125 Joule energy storage welding power supply. ADP1 has double pulse welding mode and 8 groups of

welding procedures.

Double pulse welding can improve welding quality and reduce welding spatter. During welding, two welding

pulses with different energy are used. The first pulse is used to remove the indicated coating or oxide of the

workpiece, and the workpiece is in good contact with the welding electrode. The second pulse is used to weld

the workpiece.


Detailed list of features

0.High speed and high precision microprocessor provides highly stable repeated welding.

1.Compatible with mechanical and pneumatic welding heads.

2.Double pulse welding can reduce welding spatter and improve welding quality.

3.Friendly working interface.

4.Built in welding counter.

5.Return to the last used welding procedure every time you start the machine.

6.It has primary or secondary foot switch control function.

7.Compatible with welding head with welding pressure switch and welding head without

welding pressure switch.


ADP1 physical characteristics

SIZE:287*210*450MM Weight:18kg


Main circuit diagram

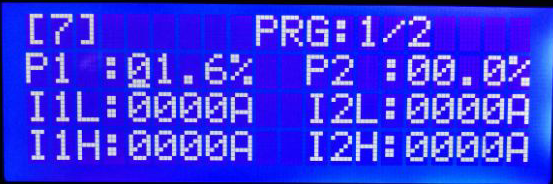

ADP1 Screen

ADP1 is divided into 2 working states: the 'RUN' state and the 'PRG' state.

In the "RUN" state for welding operation,
In the 'PRG' state for setting the welding parameters

SQ(SQUEEZE TIME)setting scop is 0-9.99seconds
HLD(HOLD TIME) setting scop is 0-9.99seconds

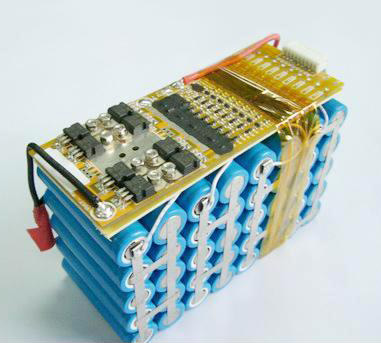

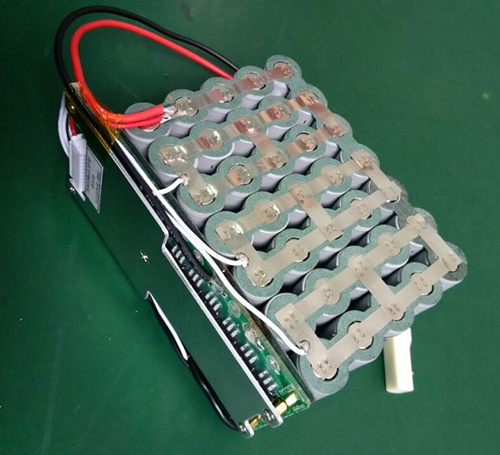

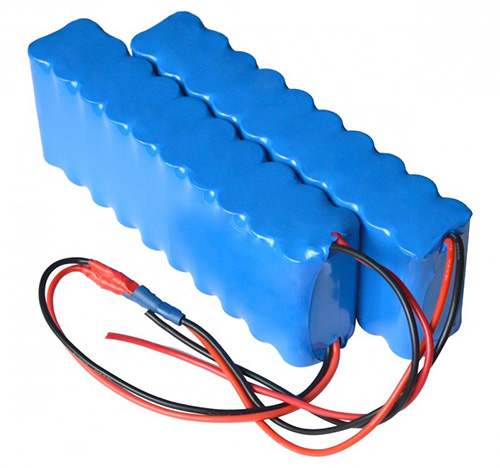

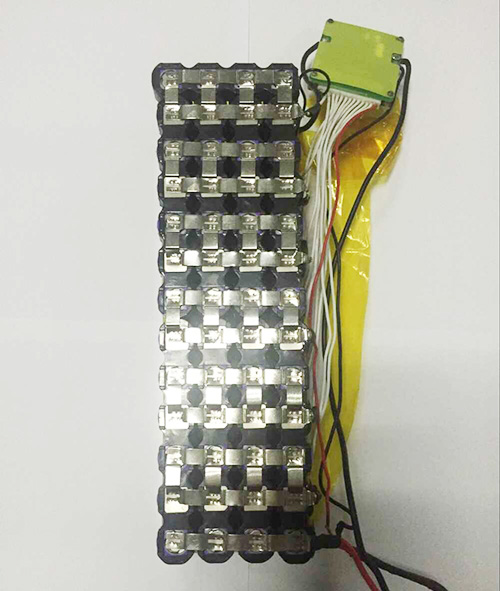

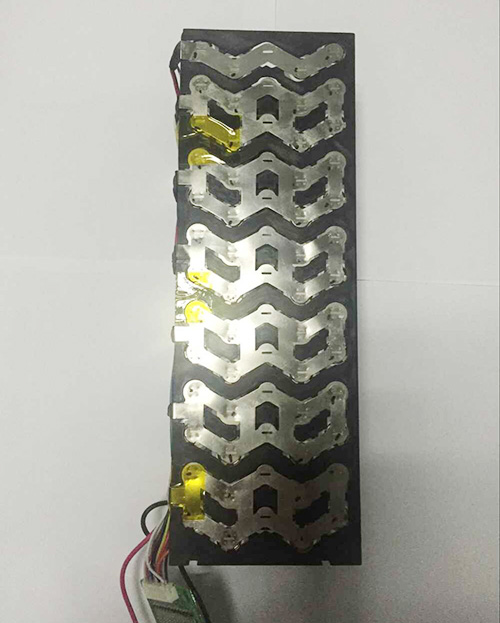

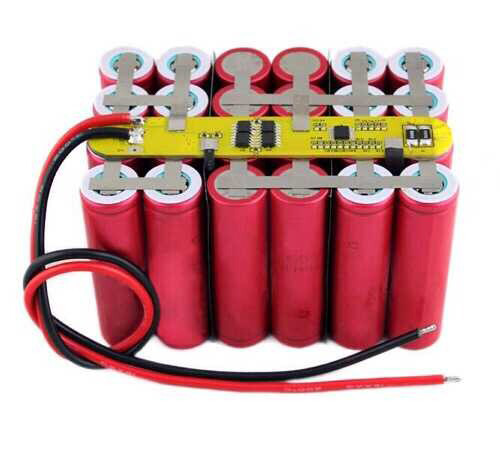

Application
