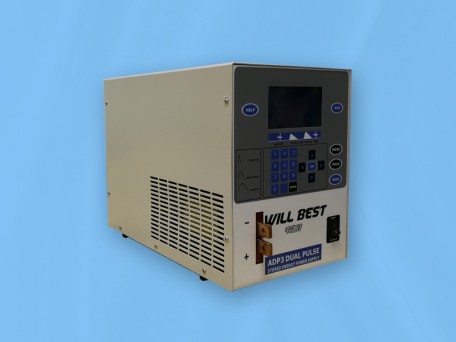

DC Capacitor discharge 300Joule,dual pulse weld power supply ADP3
DC Capacitor discharge 300Joule,dual pulse weld power supply ADP3

ADP3 welding power supply information

1.Net weight:37.5KG

3.LCD dispaly
4.dual pluse welding power supply
5.300watts/second (Joule) capacitor discharge
7.Welding thinckness:0.05-0.5mm
8.Can using air driving or foot driving welding head
Product Details


Install video,https://youtu.be/ndJUPg3eALM

Setting video,https://youtu.be/3e36rVThd1Y

Welding video,https://youtu.be/ACkgmuec4Ns

ADP3 is a capacitive energy storage welding power with 300watts/second (Joule). Can effectively solve most precision metal

parts of the resistance welding problems and can set and record 10 groups welding procedures with its unique dual-pulse

welding. And has a special energy locking function which ensuring the power supply fluctuations will not lead to the

decline in the quality of welding.

Detailed list of features

0.High speed and high precision microprocessor provides highly stable repeated welding.

1.Compatible with mechanical and pneumatic welding heads.

2.Double pulse reduces welding spatter and effectively improves welding quality.

3.Three different welding methods (1) ordinary spot welding; (2) Roll welding (seam welding); (3) Continuous welding.

4.Friendly working interface and welding pulse graphic display function improve the convenience of debugging and observation.

5.Two way synchronous relay provides welding state synchronous signal, which is convenient for automation application.

6.The remote welding specification switching function facilitates the application of automation.

7.It has the switching function of welding polarity.

8.The built-in welding current, voltage and power monitoring function reports the welding quality of each welding spot.

9.The built-in welding counter can calculate all welding spots or qualified welding spots.

10.The function of variable welding procedure can not only compensate the wear of welding needles, but also apply to

the welding of welding joints under different conditions.

11.Finally, use the memory function of the program, and return to the last welding program every time you start the machine.

12.Compatible with primary or secondary foot switches.

13.Compatible with welding head with welding pressure switch and welding head without welding pressure switch.

14.The discharge switch can be mechanical or photoelectric.

15.Weak welding prevention function, effectively reducing welding waste.

16.The foot switch terminates the welding function and improves the reliability of welding.

Main circuit diagram

ADP3 Panel

ADP3 Screen
