4KHz Inverter DC Resistance High-Frequency Weld Power supply
4KHz Inverter DC Resistance High-Frequency Weld Power supply

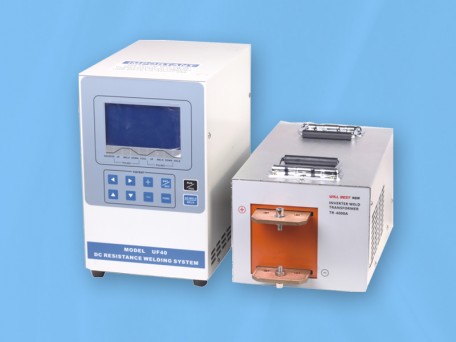

UF40 High-Frequency Inverter DC Welding Power 4KHz

1.Net weight: 9KG
2.Size:400mm*200mm*330mm
3.LCD dispaly
4.Inverter DC discharge 4500A
5.Wires welding diameter 0.02—0.7mm,
6.Sheet thick from 0.1mm—1.0mm
7.Cooling mode:Aircooling
8.Current monitor 0-10000A

Product Details

CERTIFIED TO CE AND ROHS STANDARDS

Welding video

Welding sensor,https://youtu.be/_eNqnMFGOzI

Welding Multi-stranded copper wire,https://youtu.be/x0AYF6wMoro

Welding cooper sheet+wires,https://youtu.be/Je038DG8FMI


UF40 Features


1.High inverte frequency can control the welding energy much more accurate and rapid.
Having double-pulse welding function.
2.Each pulse has following functions: slowly rise, slowly drop, welding time, welding energy and set the monitor data.
3.Control modes:current control,power control,voltage control
4.Welding current monitor and NO GOOD alarm signal output function, check which welding dot was not standard.
5.With PLC output connector, better function to connect the automatic welding machine, faster and good welding.
6. Display the welding result as word and graphic form. Make debugging more simple and intuitive.
7. Precisely controlled repeatable waveform
8.Having the welding quality monitor and output functions can automatically check out the products in bad quality.

TR-4000A inverter welding transformer information as follows,

1.Net weight:15kg
2.Size: 380mm*202mm*190mm
3.Cooling mode:Air
4.MAX. Welding current:5000A
5.Cyclic duration factor:35%
6.Input frequency 4KHz
7.Volume ratio of transformer: 60:1


UF40 Details information



Setting the welding parameter


Welding monitor




Application














Company photos
